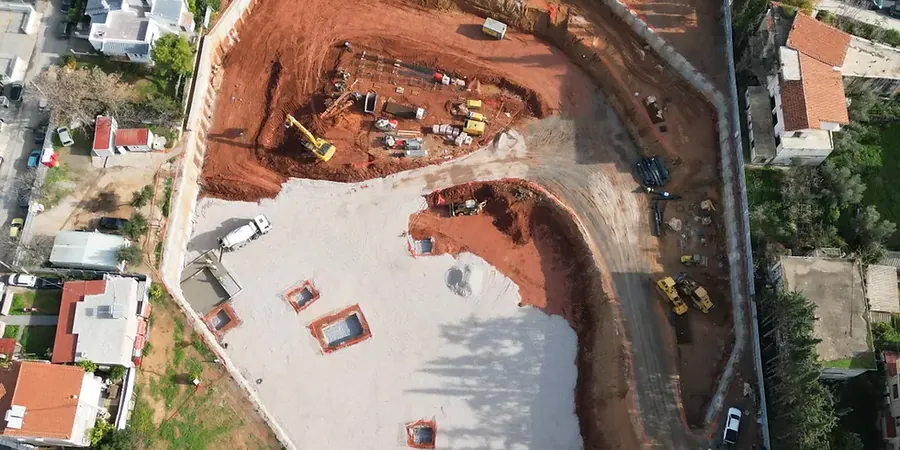

Montreal’s downtown core sits at an average elevation of only 50 meters above sea level, yet the city routinely excavates to depths exceeding 25 meters for underground transit and parking structures. The island’s substrate is dominated by the Champlain Sea clay, a sensitive marine deposit that loses strength when disturbed, making deep excavation design a discipline where local experience outweighs generic software outputs. Our laboratory team integrates site-specific data from advanced triaxial testing and in-situ profiling to develop shoring systems that manage basal heave and lateral wall movement under the strict framework of the National Building Code of Canada and CSA A23.3. Whether the project faces the till-dominated slopes of Mount Royal or the compressible soils near the Old Port, every analysis accounts for groundwater drawdown effects and adjacent heritage structure tolerance, which is essential when working within a city where over 60% of the metropolitan area is mapped as moderate to high seismic risk.
Montreal's Champlain Sea clay can lose over 80% of its undisturbed strength when remolded, making excavation sequencing and rapid support installation a safety-critical parameter.
Service characteristics in Montreal
Critical ground factors in Montreal
The Champlain Sea clay in Montreal presents a specific risk of progressive failure during deep excavation, driven by its strain-softening behavior and the presence of discontinuous silt seams that act as drainage paths. When the base of an excavation approaches the clay-till interface, artesian pressures trapped in the underlying till can fracture the confining layer, triggering sudden bottom heave and wall kick-in events that standard factor-of-safety checks may miss. Our risk assessment protocols require pore pressure monitoring at multiple horizons during each cut stage, coupled with undrained strength re-profiling from piezocone dissipation tests. The 2011 Saint-Jude landslide, though outside the city, remains a stark reminder of the destructive potential of sensitive clays in the region, and it drives our commitment to designing solid dewatering systems and monitoring plans that provide early warning of pressure buildup before it compromises the structural integrity of the retaining system.
Our services
Our Montreal-based laboratory delivers a complete suite of geotechnical design services for deep excavations, from initial site characterization through construction-phase monitoring. Each service is calibrated to the specific regulatory and geological conditions of the island of Montreal.
Shoring System Design and Analysis
We design soldier pile and lagging walls, secant pile walls, and diaphragm walls using beam-on-elastic-foundation and finite element models. Every design accounts for the staged excavation sequence, tieback preloads, and the creep potential of Champlain Sea clay under sustained lateral loads.
Dewatering and Groundwater Control Plans
Groundwater in Montreal's till and fractured limestone bedrock can complicate deep excavations. We develop multi-well dewatering strategies with real-time monitoring targets, ensuring drawdown curves stay within the tolerance of adjacent building foundations.
Basal Heave and Uplift Stability Assessment
For excavations in soft clay, basal heave is often the governing failure mode. Our undrained stability analysis incorporates the reduction in shear strength with depth and accounts for the weight of the overlying crust, providing a reliable factor of safety for each cut level.
Construction-Phase Instrumentation and Monitoring
We specify and interpret inclinometer, piezometer, and survey monitoring arrays that track wall deflection and groundwater response during active construction. Weekly reports compare field data against design predictions, triggering contingency measures if movement thresholds are approached.
Frequently asked questions
How much does a geotechnical excavation design cost for a project in Montreal?
For a typical deep excavation design in Montreal, including site investigation planning, laboratory testing, and shoring analysis, the cost ranges from CA$3,160 to CA$10,790 depending on excavation depth, soil variability, and the number of construction stages requiring analysis. Projects in the sensitive clay zone near the Saint Lawrence River often require more extensive testing, which falls within the upper end of this range.
What makes Montreal's soil so challenging for deep excavations?
Montreal sits on the Champlain Sea clay deposit, a post-glacial marine clay that is highly sensitive and prone to strain softening. When disturbed by excavation, this clay can lose a significant portion of its undrained shear strength, leading to progressive wall movement and basal heave if not properly accounted for in the staged construction sequence. The presence of a stiff desiccated crust over softer clay also creates a false sense of stability that must be carefully evaluated.
Do you need to consider seismic loads for a temporary excavation shoring in Montreal?
Yes, under the National Building Code of Canada, Montreal is classified in a moderate to high seismic zone, and even temporary shoring systems must be checked for seismic earth pressures unless the excavation duration is extremely short and risk is formally documented. Our designs follow NBCC 2015 and the geotechnical provisions of the Canadian Foundation Engineering Manual, applying the Mononobe-Okabe method or site-specific response analysis where the retained soil profile includes liquefiable layers. More info.
